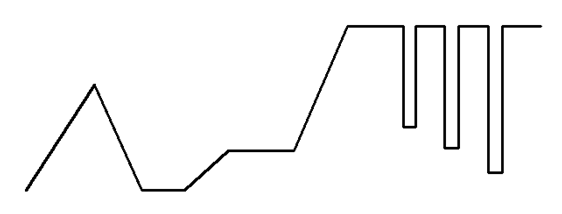

In a test system, we need to produce a variety of voltage and current waveforms, and output them circularly. APM technologies high power Programmable DC power supply can easily achieve complex test conditions.

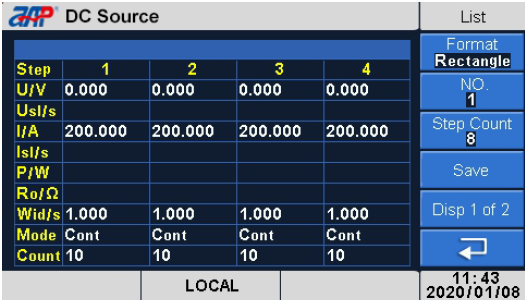

In the operation process, users do not need to have programming experience. They can simply and quickly set through the menu of list mode to edit the waveform they want. The following is the parameter setting of Variable Dc Power Supply:
U/V: voltage setting.
Usl/s: slew rate for voltage.
I/A: current setting.
Isl/s: slew rate for current.
P/W: power setting.
Ro/Ω, programmable output impedance setting.
Wid/s: width setting for this step.
Mode: Cont (continuous) or Step (once).
Count: repeat count.
Before the test, engineers can program the power supply according to the test requirements, and the programming methods can also be selected according to the actual situation, such as programming on the power panel or touch screen operation, or using the built-in standard RS232 / RS485 / USB / LAN / GPIB interface for remote communication, programming on the computer. The Adjustable Dc Power Supply can automatically carry out according to the predetermined program after receiving the program instruction compiled by the engineer quickly. This list function greatly facilitates the operation of the test engineer and ensures the simple, fast and accurate completion of the test.
