SPS-300 Series

AC Power Supply System

This series programmable AC source system adopts high speed DSP+CPLD control, high frequency PWM power technology and active PFC design to realize AC/DC stable output, high power up to 20kW.The user friendly interface allows for quick access to AC source's function through a large graphic LCD display front panel with touch screen or keypad. Can simulate complex AC lines conditions and measure critical product characteristics during testing.
Product Catalogue Product Video Application Case / Technical Articles Related Download Model Search

Product Features

Large touch color screen, possess complete functions and easy to operate

AC+DC mixed or independent output mode for voltage DC offset simulation

Capable of setting output slope/phase angle, 0~359.9°

High output crest factor could satisfy surge tests requirements

Output frequency 15~1000Hz, capable of setting output slope of voltage and frequency

Multiple current measuring level selection. Increase measurement accuracy

Standard USB data interface, support CSV file waveform import

OCP/OVP/OPP/OTP/ short circuit protection

Built-in power meter, which is capable of measuring 15 electrical parameters per phase, including voltage, current, power, etc

Capable of setting voltage and current output restriction, support for constant current output mode

With reverse current protection to avoid current flowing backward

Function & Advantage

Graphical User Interface

The large color touch screen provides simple and fast operation for customers, real-time update of display output data and power status, and graphical display makes it more intuitive.


Settable ON/OFF Phase Angle of Output Waveform

This series of AC power supply can set the ON phase and OFF phase of sinusoidal output waveform, suitable for the output test of switching power supply. Set the ON angle to 90 degrees for surge current testing, the power supply will show the measured value of surge current. Users can set when start to measure the surge current and the duration of the measurement.


Slew Rate Setting for Voltage and Frequency

This series AC power supply let users set the slew rate of voltage and frequency, in such application in order to reduce the inrush current during motor or compressor startup.


Triac Dimmer Function

This series AC power supply built-in triac dimmer function, which is used to do dimming and speed regulating test for lamp or electric motor to ensure the products work well both in R&D and production testing.


Power Line Disturbance Simulation

This series AC power supply provides powerful function to simulate all kinds of power line disturbance conditions such as cycle dropout, transient spike, brown out and etc. This feature make this series AC power supply ideal for R&D labs, universities and certification labs.


LIST Mode


STEP Mode


PULSE Mode

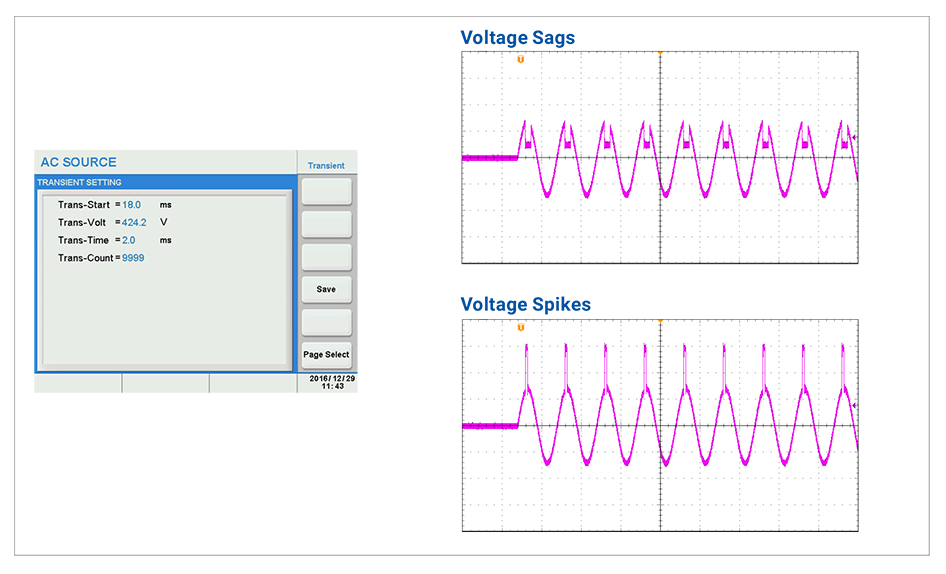

Voltage Sags/Voltage Spikes


File Save and Recall Via the USB Interface

The user can save the screenshot via the USB interface in the front panel. The user can import a CSV file via the USB interface to generate waveform output.


Options & Accessories

  • RS-232 communication cable (standard)For RS-232 communication

  • USB communication cable (standard)For USB communication

  • LAN & GPIB card & communication cable (optional)Applicable in SP-300 series system combined with 2U unit

  • External control card & cable (optional)Applicable in SP-300 series system combined with 2U unit

  • GPIB card & cable(optional)Applicable in SP-300 series system combined with 3U/4U unit

  • Professional version upgrade software (optional)Upgrade version from advanced to professional

Show All

Related downloads

目前在第1页, 共有1页, 共有1条记录 First Prev Next End 跳转到页

Model Search

Search Clear
Model Voltage Current Power Standard Communication Interface Frequency Range Size
SPS300VAC1200W-2-9 150V/300V 10.08A/5.04A 1200VA RS232/RS485/USB15~1000Hz9U Inquiry
SPS600VAC1200W-2-9 300V/600V 5.04A/2.52A 1200VA RS232/RS485/USB15~1000Hz9U Inquiry
SPS300VAC1800W-2-9 150V/300V 15.12A/7.56A 1800VA RS232/RS485/USB15~1000Hz9U Inquiry
SPS300VAC2000W-2-9 150V/300V 15.56A/8.28A 2000VA RS232/RS485/USB15~1000Hz9U Inquiry
SPS600VAC2000W-2-9 300V/600V 8.28A/4.14A 2000VA RS232/RS485/USB15~1000Hz9U Inquiry
SPS300VAC2400W-2-17 150V/300V 20.16A/10.08A 2400VA RS232/RS485/USB15~1000Hz17U Inquiry
SPS300VAC3000W-2-9 150V/300V 24.84A/12.42A 3000VA RS232/RS485/USB15~1000Hz9U Inquiry
SPS300VAC3000W-2-9 150V/300V 24.84A/12.42A 3000VA RS232/RS485/USB15~1000Hz9U Inquiry
SPS600VAC3000W-2-9 300V/600V 12.42A/6.21A 3000VA RS232/RS485/USB15~1000Hz9U Inquiry
SPS300VAC4000W-3-17 150V/300V 28.8A/14.4A 4000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS300VAC4000W-2-17 150V/300V 33.12A/15.56A 4000VA RS232/RS485/USB15~1000Hz17U Inquiry
SPS600VAC4000W-3-17 300V/600V 14.4A/7.2A 4000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS300VAC4500W-2-9 150V/300V 37.26A/18.63A 4500VA RS232/RS485/USB15~1000Hz9U Inquiry
SPS300VAC6000W-4-17 150V/300V 49.68A/24.84A 6000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS300VAC6000W-3-17 150V/300V 43.2A/21.6A 6000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS300VAC6000W-2-17 150V/300V 49.68A/24.84A 6000VA RS232/RS485/USB15~1000Hz17U Inquiry
SPS600VAC6000W-4-17 300V/600V 24.84A/12.42A 6000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS300VAC8000W-4-17 150V/300V 57.6A/28.8A 8000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS300VAC8000W-3-17 150V/300V 57.6A/28.8A 8000VA RS232/RS485/USB/LAN15~1000Hz21U Inquiry
SPS600VAC8000W-4-17 300V/600V 28.8A/14.4A 8000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS300VAC9000W-4-17 150V/300V 74.52A/37.26A 9000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS300VAC10000W-4-17 150V/300V 82.8A/41.4A 10000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS600VAC10000W-4-17 300V/600V 41.4A/20.7A 10000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS300VAC12000W-4-17 150V/300V 86.4A/43.2A 12000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS300VAC12000W-4-21 150V/300V 99.36A/49.68A 12000VA RS232/RS485/USB/LAN15~1000Hz21U Inquiry
SPS300VAC15000W-4-17 150V/300V 124.2A/62.1A 15000VA RS232/RS485/USB/LAN15~1000Hz17U Inquiry
SPS300VAC16000W-4-21 150V/300V 115.2A/57.6A 16000VA RS232/RS485/USB/LAN15~1000Hz21U Inquiry
SPS300VAC20000W-4-21 150V/300V 165.6A/82.8A 20000VA RS232/RS485/USB/LAN15~1000Hz21U Inquiry
